Stacking stereoscopic garage

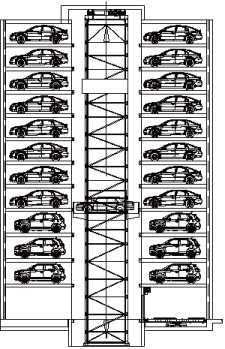

The automatic parking system for lane stacking is the application of stacking and storage technology. The stacker completes the vertical lifting and lowering through horizontal movement in the lane. A set of stackers covers each parking space of different parking layers to realize the simultaneous movement of XY axis. The driver only needs to park the vehicle on the parking platform, and the system will safely park the vehicle in the three-dimensional parking space. The roadway stacking is applicable to the site with short site but high parking density requirements. Lane stacking is the most economical product of all automatic parking systems.

产品特点


① Heterogeneous layout, single equipment 100 parking spaces and multiple elevators combined layout, landscape curtain wall at the entrance and exit floors;


② Adopt frequency conversion control, fast and stable, low energy consumption; High-speed elevator/robot combination;


③ High-end car hall, parking at any angle, one-button access, 30-90 seconds access;


④ Serving robots to carry vehicles, safe, stable and efficient; Vehicle anti-theft, you can make an appointment to access the vehicle;


⑤ The robot gripper/flat plate will not damage the vehicle suspension and tire;


⑥ Forward stock-in and forward stock-out; The floor area is 0.35 parking spaces/square meters; conserve energy ,reduce emissions;


⑦ The single-storey height is 2 meters. The above-ground garage saves the cost of steel structure, and the underground garage saves the cost of building excavation/construction.






技术参数

设备型号PXD巷道堆垛类立体停车设备
容车数量100辆/套
容车规格(mm)5200*1950*1550/1950mm
容车重量(kg)≤2200-2800kg
平均存取车时间30-90秒
单套库占地面积宽度约17m根据巷道长度决定占地面积
搬运型式机械手抱夹/梳型交换
升降电机(电机功率)11kW/15kW
横移电机(电机功率)5.5kW
升降速度35-90-120m/min
横移速度75-90-120m/min
操作方式人脸识别/车牌/I C卡/自动/手动
电源三相五线制AC380V/50HZ

应用场景

Increase the capacity of aboveground and underground garages in residential areas, offices, schools, hospitals, commercial areas, entertainment places, etc.
