Vertical lifting stereoscopic garage

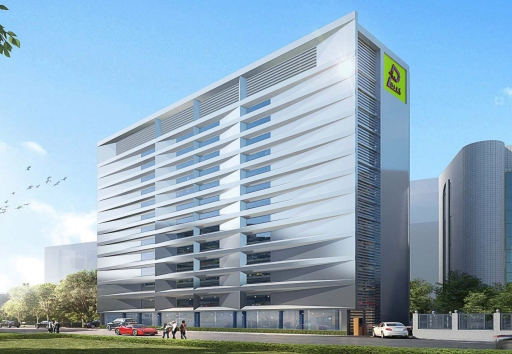

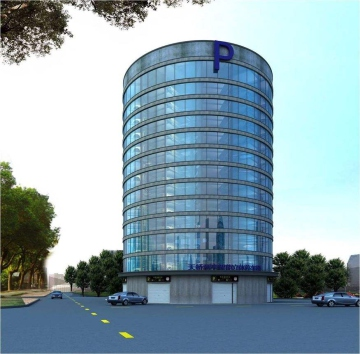

The vertical lifting type automatic parking system is also called the parking tower. The vertical lifting action of the vehicle is carried out by the elevator. The horizontal direction handover of the vehicle is completed by the traverse comb of each parking space, and the vehicle access is completed by mutual cooperation. Move vertically to park two vehicles on each parking floor, up to 30 floors, and the floor area is only 50m2. The average vehicle area is less than Im2. The average pickup time is 60 seconds. It is the parking equipment with higher space utilization and faster speed in all automatic parking systems. It is suitable for very small plots in modern cities, and it is also a beautiful landscape in the city to solve high-density parking.

产品特点


① There are 25 floors above the ground, one elevator and two households, and 50 parking spaces for single equipment. Multiple sets can be arranged in combination;


② Adopt frequency conversion control, fast and stable, low energy consumption;


③ The elevator speed is 120 meters/minute; 30 to 90 seconds to access the vehicle;


④ The flat plate will not damage the vehicle suspension and tire;


⑤ Appearance glass curtain wall; High-end car hall, spacious parking, one-button access; Forward stock-in and forward stock-out;


⑥ The single seat covers an area of 5. Square meters, providing 50 parking spaces. Floor area: 1 parking space/m2;


⑦ Energy conservation and emission reduction, vehicle anti-theft, can make an appointment to access the vehicle; The single storey is 1.7 meters high, saving steel structure costs.


技术参数

设备型号PCS垂直升降类立体停车设备
容车数量单套标准塔:50辆套
容车规格(mm)5200*1950*1550/1950mm
容车重量(kg)2000-2350KG
平均存取车时间30-90秒
单套库占地面积50m²
搬运型式流型交换/车台板式交换
升降电机(电机功率)30kw
横移电机(电机功率)0.2/0.4/2.2KW
升降速度90-120m/mi
横移速度25m/min
操作方式人脸识别/车牌/IC卡/自动/手动
电源三相五线制AC380V/50HZ

应用场景

Places with large parking capacity, such as business districts, hospitals, industrial parks, public buildings, etc
