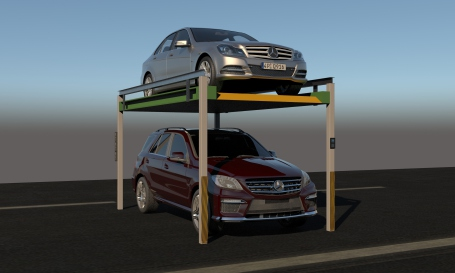

A mechanical parking device that uses a lift or a pitching mechanism to access the vehicle. 2-4 floors are set on the height, and each floor is equipped with a vehicle carrier plate. A whole frame is used to fix the position of the vehicle carrier plate. Through the lifting movement of the whole frame, the vehicle carrier plate of the corresponding floor is moved to the level with the ground to achieve vehicle access.
① Limited parking space, multiple parking (2-4 times);
② Simple, compact, economical and practical;
③ The foundation works are simple, firm and fast;
| 设备型号 | PJS简易升降类立体停车设备 |
| 容车数量 | 常见二层设备：2辆/组 |
| 容车规格(mm) | 5000*1850*1550mm |
| 容车重量(kg) | 2000kg |
| 驱动方式 | 电机链条/液压马达 |
| 电机功率(升降) | 2.2kw/3.7kw |
| 升降速度 | 6-8m/min |
| 操作方式 | 按键操作 |
| 电源 | 三相五线制AC380V/50HZ |
