Vertical and horizontal garage

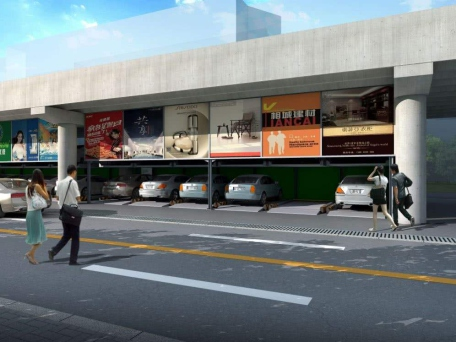

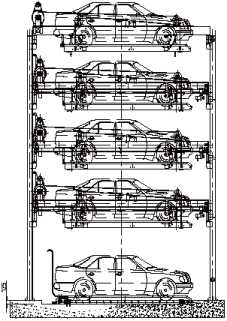

The vertical parking equipment of lifting and traversing type drives the lifting and traversing of the car platform by the motor driving the chain or steel wire rope to realize the access of the car. Although the parking experience of reverse parking is slightly worse than that of automatic parking, it is widely used in the market due to its simple equipment and low cost. Five parking spaces can be realized by using the two-layer lifting and traversing equipment on the basis of the three Jietong parking spaces. The minimum net height of the equipment is only 3.6 meters. It is widely used in underground parking lots.

产品特点


① For the limited parking space, the number of parking can be multiplied, which can save a lot of space;

② Modular installation, which can be combined with multiple units, is convenient and flexible, and the scale can be large or small to meet various needs;

③ PLC computer control, simple operation, convenient access to the car;

④ Simple structure design, stable operation, safe and reliable; Safety hook is set to fully ensure vehicle safety;

⑤ Photoelectric detection, control the vehicle specification and parking position to make the vehicle park orderly;

⑥ An emergency stop button is provided to stop in case of emergency to avoid accidents;

⑦ The use of parking space on the ground floor is the same as that of the general plane garage;

⑧ The equipment is simple, reliable, convenient to use and low in price. At present, it is widely used in the market, with a market share of more than 85%.

技术参数

设备型号	PSH升降横移类立体停车设音
容车数量	常见二层设备：5辆/组
容车规格(mm)	520019001550/1950mm
容车重量(kg)	2OOO-25OOkg
驱动方式	电动机链条传动
升降电机(电机功率)	2.2kw/3.7kw
升降速度	7-8m/min
横移速度	4-6m/min
操作方式	ID卡/按键操作
电源	三相五线制AC380V/50HZ

应用场景

Increase the capacity of aboveground and underground garages in residential areas, offices, schools, hospitals, commercial areas, entertainment places, etc.
