Vertical circulation stereoscopic garage

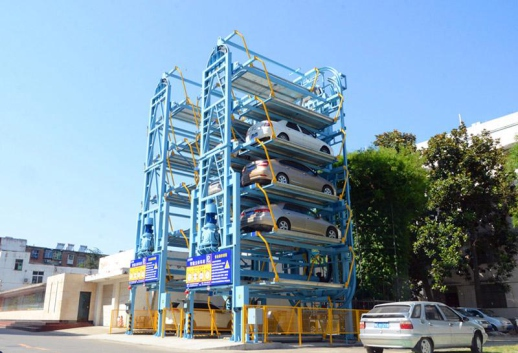

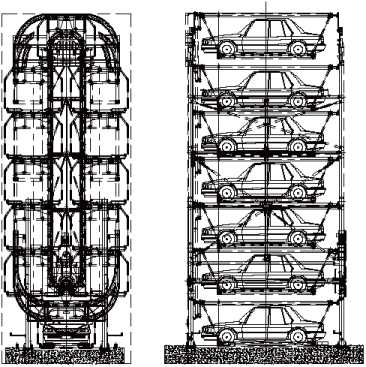

The vertical circulation parking equipment refers to the parking equipment that the carrier circulates in the vertical plane, which is composed of metal structure frame, carrier, drive system, control system, safety and detection system. The vertical circulation is mostly installed outdoors. Only 2 parking spaces can cover 10 parking spaces. It is flexible in setting, easy to operate, reliable in equipment and easy to manage.

产品特点


① There is one entrance and exit for each group, and there is no need to wait for the access vehicle;


② Only longitudinal action, stable and reliable performance;


③ Small floor area, visible sewing pin installation and deployment;


④ Wide loading plate design, better car access experience;


⑤ The facade can be unsealed or semi-enclosed to avoid fire acceptance;


⑥ The civil engineering workload is relatively small, saving costs;


⑦ The entrance is equipped with roller shutter door, which is safer;


⑧ The appearance can be customized and integrated with the surrounding environment;


⑨ When the size of the traffic lane is insufficient, a rotating disc can be installed in front of the garage.




技术参数

设备型号PCX垂直循环类立体停车设音
容车数量7层(12辆/组)/9层(16辆/组)/11层(20辆/组)
容车规格(mm)5200*1850*1550mm
容车重量(kg)2000kg
驱动方式电动机链条传动
电机功率(升降)22kw/30kw
升降速度4.5-7.5m/min
操作方式人脸识别/车牌/I C卡/自动/手动
电源三相五线制AC380V/50HZ

应用场景

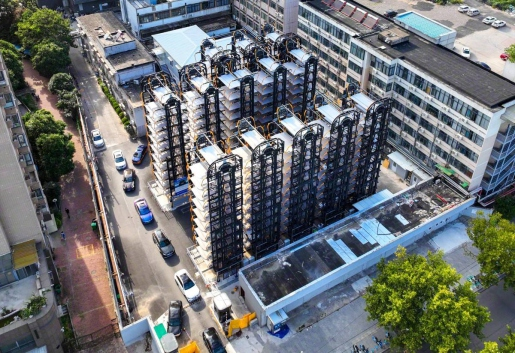

Widely used in hospitals, commercial centers, residential areas, public parking lots, etc
